  • We are the independent Muir-Hill Tractor & Loader Specialists.
    We own several 101,121 tractors & A5000 loaders. With servicing facilities and extensive parts store, we supply parts across Britain and the world. Our parts book library covers tractors & loaders plus their many variants.
  • If you can't see what you require please contact us, as we have hundreds of parts in stock.

A selection of the parts we have is below (remember - it's only a small selection!). If you can't see what you need, give us a ring or email....... we are here to help you.

Muir-Hill Cab & Body Spares
Our cab spares page includes Seats, sliding door track kits, handles, catches and draught excluders, click on the link below to go straight to this new section.

Go to CAB SPARES Section

Hydraulic Seal Kits

See a selection of our seal repair kits for Tractors and Loaders.

Go to SEAL KIT Section

Filters
Our new filters page lists some of the filters we have available. Click on the link below to go straight to this new section.

Go to FILTERS Section

**** New Parts Available Now ****

Description


Details

Bostrom 300 Deluxe Seat

Click to enlarge

Original specification Bostrom 300 seat. Available in vinyl and cloth trim in high back version only. Arm rests are available as an option (they no longer have the bar around the back of the seat. This is a quality seat with all the original features and includes runner set.

*** NEW ***

Series III Rear Light

muirhill/230136 266180 Rear Light Rubber Base.jpg

Original PMG rear light assembly, part no: 230136. Pre-wired, supplied complete with bulbs. Rubber base, part no: 266180 available separately.

*** NEW ***

Transfer Box

muirhill/210079_Spacer_Ring.jpg

Spacer Ring Part No: 210079 - Transfer box output shaft

*** NEW ***

Fuel Gauge & Sender Unit

muirhill/Fuel_Sender_Gauge.jpg

New replacement Fuel Gauge & Sender Unit
These units will fit 101 and 121 tractors. The gauge and sender unit are pre calibrated as a pair to give reliable service.

Headlights

Click to enlarge

Replacement headlights, featuring dip & main beam. Very good reproduction of original Lucas lamp, finished in Muir-Hill Yellow.

Air Pre Cleaner

Visibowl Air Cleaner


Replacement "Visibowl" Air Cleaner. As fitted to tractors.

*** NEW ***

Air Filter Housing (Premium)154668 - 230540

muirhill/230540_Air_Filter_0011.jpg

Top Quality Air Cleaner Assembly from one of Europe's top manufacturers of filters. This unit is the direct replacement for the original and comes complete with the correct filter

*** NEW ***

Air Filter Housing (Working Model)

muirhill/Filter1.jpg

Alternative to the Premium version, this unit uses the same filter element as original. The main body is powder coated steel, with a plastic end cap. This ideal for working tractors, whilst still using the correct filter element. Supplied with new filter element.

*** NEW ***
Air Filter Kit

muirhill/Filter_Kit.jpg

Compete Air Filter housing kit. Comprises: Air Filter Housing, 2 x Securing Clamps, Stack Pipe & Visibowl Pre Filter. Choice of either premium or working filter housing

Air Filter Mounting Band

muirhill/Filter_Strap.jpg

As per original Specification. These mounting bands are suitable for original filter housings and both new units we supply. Fixes on to original mounting holes and finished in electroplate coating.

*** NEW ***

Air Filter Stack Pipe

muirhill/Stack_Pipe.jpg

Air Filter Stack Pipe connecting the main filter housing to the Pre Cleaner

Power Steering Pump
Click to enlarge
Genuine replacement Sauer Sundstand Power Steering Pump. Part No: 210596 This unit is now obselete and no new units are been produced. We have the last stocks available. All new units subject to surcharge on old unit.

Contact Us

Engine & Cooling Parts - Ford 2715E, 2700 Series Engines & Perkins 6.354

Click to enlarge
Ford 2715E Block
Click to enlarge
Ford 2715E Crankshaft Assembly

Description


Details

Exhaust

Click to enlarge

New replacement Silencer & "S" bend for 121 Series III
Finished in heat resistant black
Also available for the 121 SII finished in either heat resistant silver)

Injector Pipes

Click to enlarge

Brand new injector pipes for the Ford 2715 Engines. Available separately or as a set.

*** NEW ***
Twin Pulley Water Pump

click to enlarge

Fully refurbished and tested twin pulley water pumps for Ford 2715E. Service exchange only.

Single Pulley Water Pump Assy
water pump.jpg
2715E Water Pump
Water Pump assembly for Ford 2715E Engines. Equivalent to A212908

Top & Bottom Radiator Hoses

Muir Hill Radiator Hoses
Muir Hill Radiator Hoses

New Top & Bottom Radiator Hoses for Ford 2700 Series engines

Full Gasket Set

muirhill/380_gasket_set.jpg

Full Engine gasket for Ford 2715. Set includes front & rear crank seals

Piston

muirhill/380_piston.jpg

380 cu in piston & pin. Available in Std, +20,+30,+40. Also semi finished liners available

Piston Rings

muirhill/piston_rings.jpg

Piston ring sets (per piston) available in Std,+20,+30,+40

Camshaft

muirhill/camshaft.jpg

New camshaft for 2715 engine

Cam Follower

muirhill/tappet.jpg

New cam followers for 2715 Engine (advice fitting with new camshaft)


muirhill/inlet_valve.jpg

Inlet Valve Ford 2715, 2713, 2714


Exhaust Valve

Exhaust Valve - Fits above engines


Valve Spring

Valve Spring for 2715e Engines


muirhill/oil_pump.jpg

High quality new oil pump


muirhill/conrod_bearings.jpg

Con Rod (Big End) Bearing Sets for 27## series engines. Available in Std,+10,20,30,40,50


muirhill/main_bearings.jpg

Main Bearing Sets available in sizes as above


muirhill/valve_guide.jpg

Inlet & Exhaust Valve Guide

Contact Us

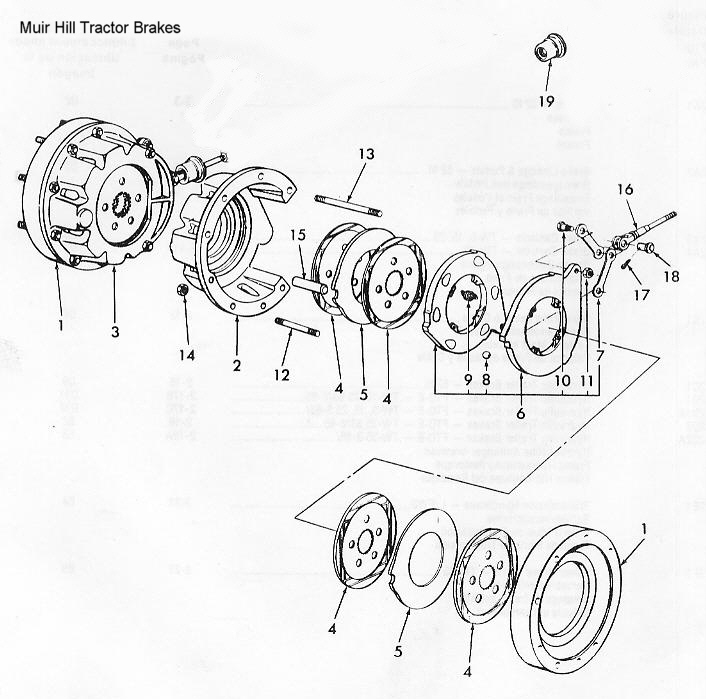

BRAKE PARTS

Description


Details

Brake Slave Cylinder

New brake slave cylinders. Supplied complete with pushrod. Equivalent to 250945 & 250947 - These are not refurbished, "sleeved" or old stock, but brand new UK made cylinders from the original manufacturer.

Master Cylinder

New Replacement Master Cylinders. Equivalent to 251175, these quality British made Master Cylinders are made to the original Lucas Girling specification. These are BRAND NEW and not old stock or remanufactured units.

Slave Cylinder Repair Kit


Replace your leaking cylinders with this service kit. These are genuine OEM parts and include seal, dust cover, circlip, dust cap, Rubber retaining band, & packet of Lucas rubber grease. Equivalent to 250943

Master Cylinder Repair Kit


Refurbish your leaking master cylinder with this service kit. This kit includes  seal, dust cover, circlip, Spring Washer, Valve Seal, Crimping Sleeve & packet of rubber grease. Equivalent to 250926

Brake Return Spring

Brake Return Spring also fits Diff Lock Slave Cylinder. Equivalent to 520 16 412 (supplied in packs of 6 - for all cylinders)

Flexible Brake Hose

This hose is equivalent to 286 97 354 brake hose and also 286-95-408 from the Master Cylinder to shuttle valve. It is 25mm longer than original but has the same male ends and is steel reinforced. Available with nuts and locking washers (extra)

Brake Rod Seal

 OE Spec Brake Rod Seal for front and rear axles. Equivalent to A196012
251593

Original Girling reservior for brake master cylinders

210030


Original Girling reservior for diff lock master cylinder

Contact Us

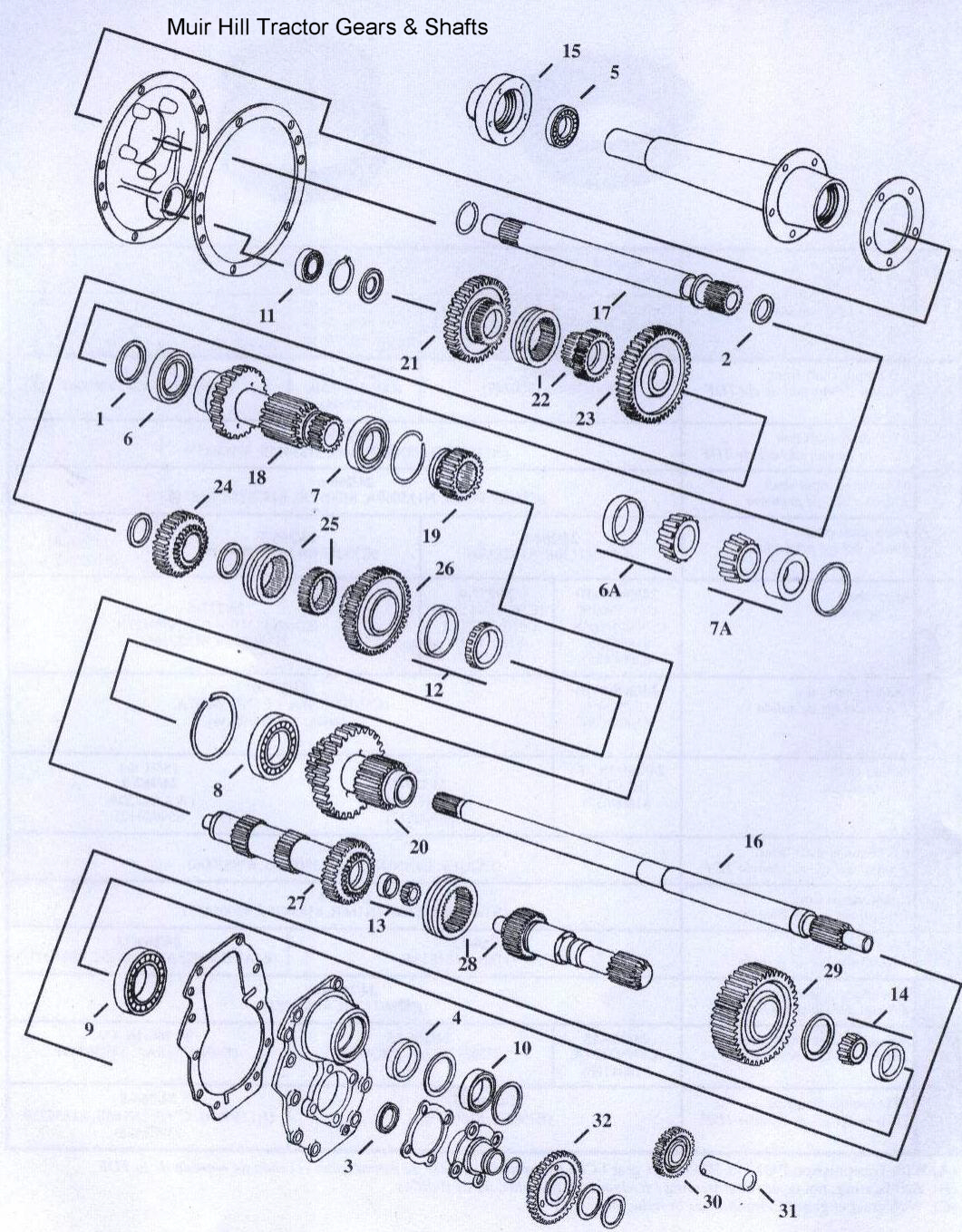

Transmission, PTO & Transfer Box

Description


Details

Gearbox Top Cover Gasket

Top Cover Gasket

Top Cover Gasket for all Ford Gearboxes on 101, 121

Transmission Gasket Set

muirhill gearbox gaskets

Replacement gasket set for all Ford transmissions used on 101 and 121

Transmission Repair Kit

Click to enlarge
Complete set of gaskets and bearings to overhaul the gearbox. Gasket set and bearings available separately.

PTO Drive Hub

click to enlarge

15 & 20 spline PTO drive hub units. We advise replacing the PTO drive shaft at the same time. Part No: 210241 & 212573

PTO Drive Shaft

click to enlarge

15 & 20 Spline PTO Drive Shaft - 45' Pressure angle Part no: A200456 & A215013

Main Drive Housing

click to enlarge

Support for main drive and clutch release bearing hub - non DP - Part No: A200472

Input Shaft

click to enlarge
Input Shaft - Transmission non DP. Part No: A200460

Input Shaft (DP)

click to enlarge
Input Shaft - Transmission with DP. Pt No: A212503
210222
Click to enlarge

Top Quality Universal Joint to replace Prop Shaft U/J 210222. Made by GKN Hardy Spicer - not to be confused with cheap import types. Supplied with new circlips and grease nipple.

Bearing Kit


Transfer Box Bearing Kit - Containing original specification "Branded" bearings manufactured by SKF, RHP, R&M. These are sourced from the original manufacturers and made to the same exacting standards. Not to be confused with less expensive imports.
The full kit contains all the bearings required for a overhaul. Individual bearings are available separately.

529-11-124

529-11-124 Bellcrank Bush

Oilite Bush for the clutch pedal linkage bellcrank

Contact Us

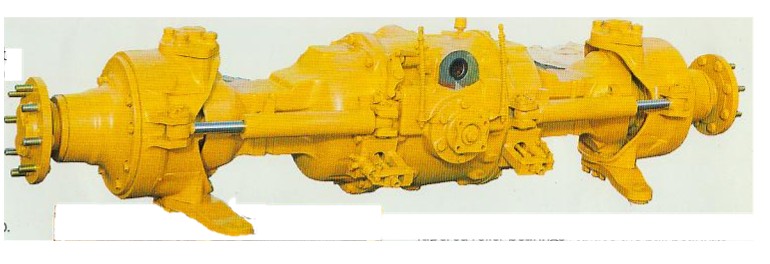

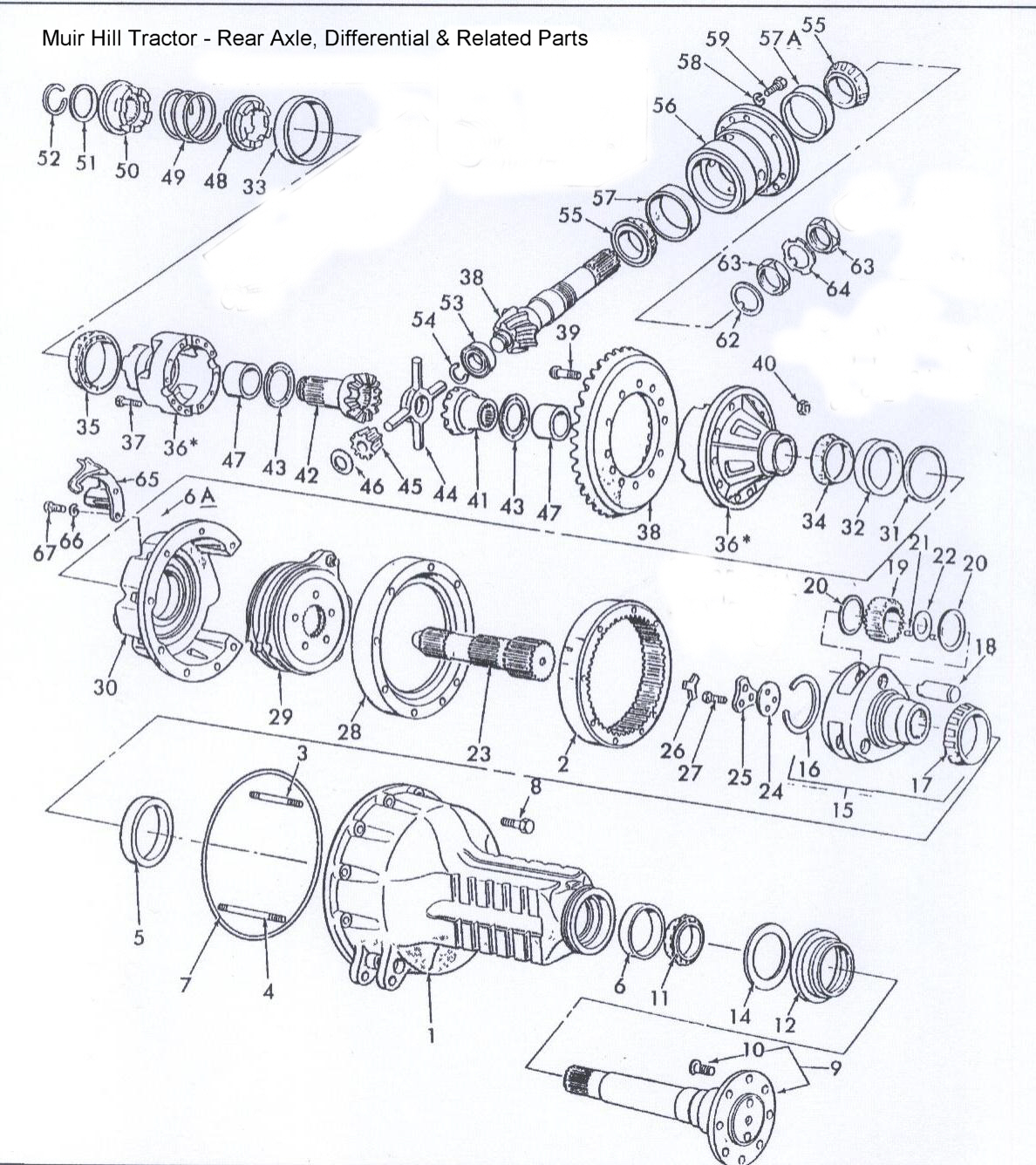

 Muir Hill Axle Spares

Click to show full size

Description


Details

256544

CV Joint Boot. Made from UV, oil & water proof polyurethane. These boots remain strong & flexible under all conditions.

CV Joint Grease

CV Joint Grease

Morris Lubricants K48 Grease - Lithium Moly Black Grease is manufactured from a Lithium soap base and highly refined mineral oil, with added Molybdenum Disulphide to provide protection against seizure in conditions when ordinary greases would fail. Also included in this grease are additives to stop corrosion, rust and oxidation. Additionally this grease shows excellent resistance to severe mechanical working. K48 is specially formulated for use in industrial equipment, cars, vans, trucks and construction plant such as bulldozers, scrapers, loading shovels and dump trucks where it will give superior performance, in all industrial plain and rolling element bearings.  It is particularly recommended for constant velocity joints.

Front Axle Seal Kit

Click to enlarge

Axle seal kits are now available, containing oil seals and O rings for one front axle.
(All seals & O rings are individually packed & numbered)

212-39-060

muirhill/212_39_060.jpg
Inner Pivot Housing Half Shaft Seals (2 required per side)

212-59-313

muirhill/212_59_313.jpg
Outer Pivot Housing Half Shaft Seal

212-59-316

muirhill/212_59_316.jpg

Axle Centre Pivot Pin Seal (2 required)

212-59-221

muirhill/212_59_221.jpg
Input Pinion Seal

A196073

muirhill/65475_pic1.jpg
Outer Hub Retainer & Seal Assembly

529-12-735

muirhill/529_12_735__1_.jpg

Axle Cradle Pin Bush - British Made

529-12-815

muirhill/529_12_815.jpg

Outer Pivot Housing Driveshaft Bush - British Made

529-12-128

muirhill/529_12_128.jpg

Pilot Bush - End of CV Joint - British Made

529-12-516

muirhill/steering_bush.jpg

Narrow bushes for the power steering ram pins - British Made.
4 bushes per ram

Contact Us

Fuel System Parts

 Fuel Strainer Assy

Replacement fuel strainer and glass bowl assembly. Equivalent to 253399

Fuel Strainer

Fuel Tap & Screen Assy

Replacement fuel and strainer stop tap. Equivalent to A 214010

Fuel Tap & Screen



Fuel Lift Pump

Replacement fuel Lift Pump. Equivalent to A251397/1. A service kit for existing pumps is also available

2715 Lift Pump

Fuel Filler Cap

Original OEM Specification Fuel Filler Cap. Made in the UK, complete with cork seal and securing chain. Electroplated finish (Chrome finish is available)

Click to enlarge
Fuel Filler Cap



Filter Head Assy

Replacement fuel filter housing, supplied without any fittings (as in picture). Equivalent to 213882

Fuel Filter Head

Complete Filter Head Assy

Replacement fuel filter housing, supplied with all fittings & filters (as in picture). Equivalent to 213881

muirhill/213881_pic1.jpg
Complete Fuel Filter Head



Ball Joint

250980 Throttle Link Ball Joint - From the original manufacturer, this high quality ball joint includes the "micrometer" adjustment to compensate for wear.







Starter Motor (Ford 2715E)


Replacement for 2715E starter motor. Equivalent to A265213. High Power 3.1kW. Solenoid Assembly also available

2715 Starter Motor



Name:

Enquiry Form

Email address:
Details:


Standard Hardware List

The Standard Hardware that was common to tractors and loaders were known as "Standard Items". These parts were numbered using the format xxx-xx-xxx. It comprises nuts, bolts, washers, rivets, O rings, oil seals, bulbs etc. These were standard parts available in the factory. With our detailed records of part specifications, we can now supply the exact type of nut, bolt, washer or O Ring that was fitted to new machines.

Click on the link below to see the sub sections and contact us with your requirements.

Go to "Standard Hardware List"
